Price: $35,000
Location: Oakland Park, FL
Inquiries: hey at risingxedge.com
Bill of Sale provided, available for immediate pickup.

Detailed Description

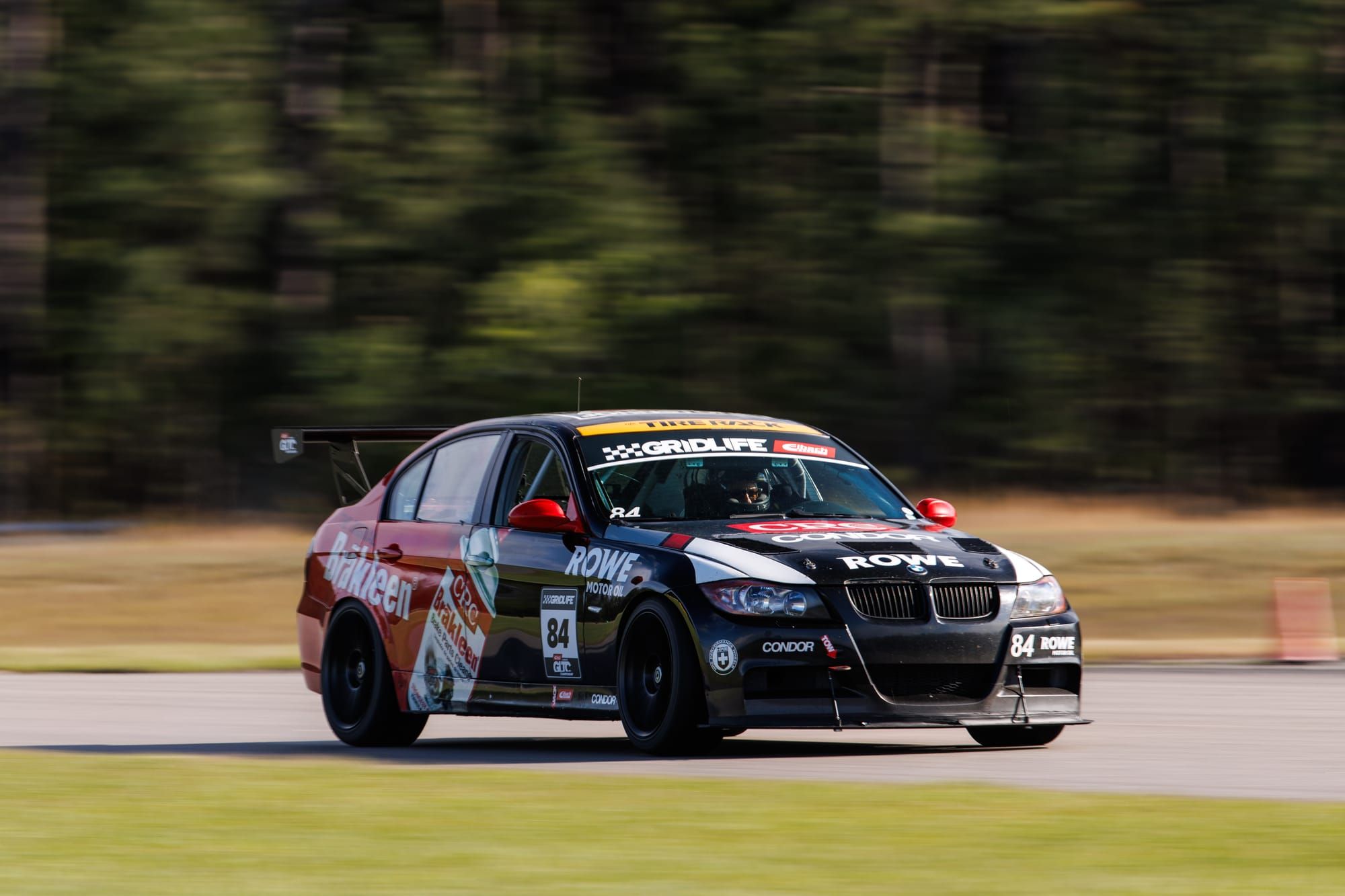

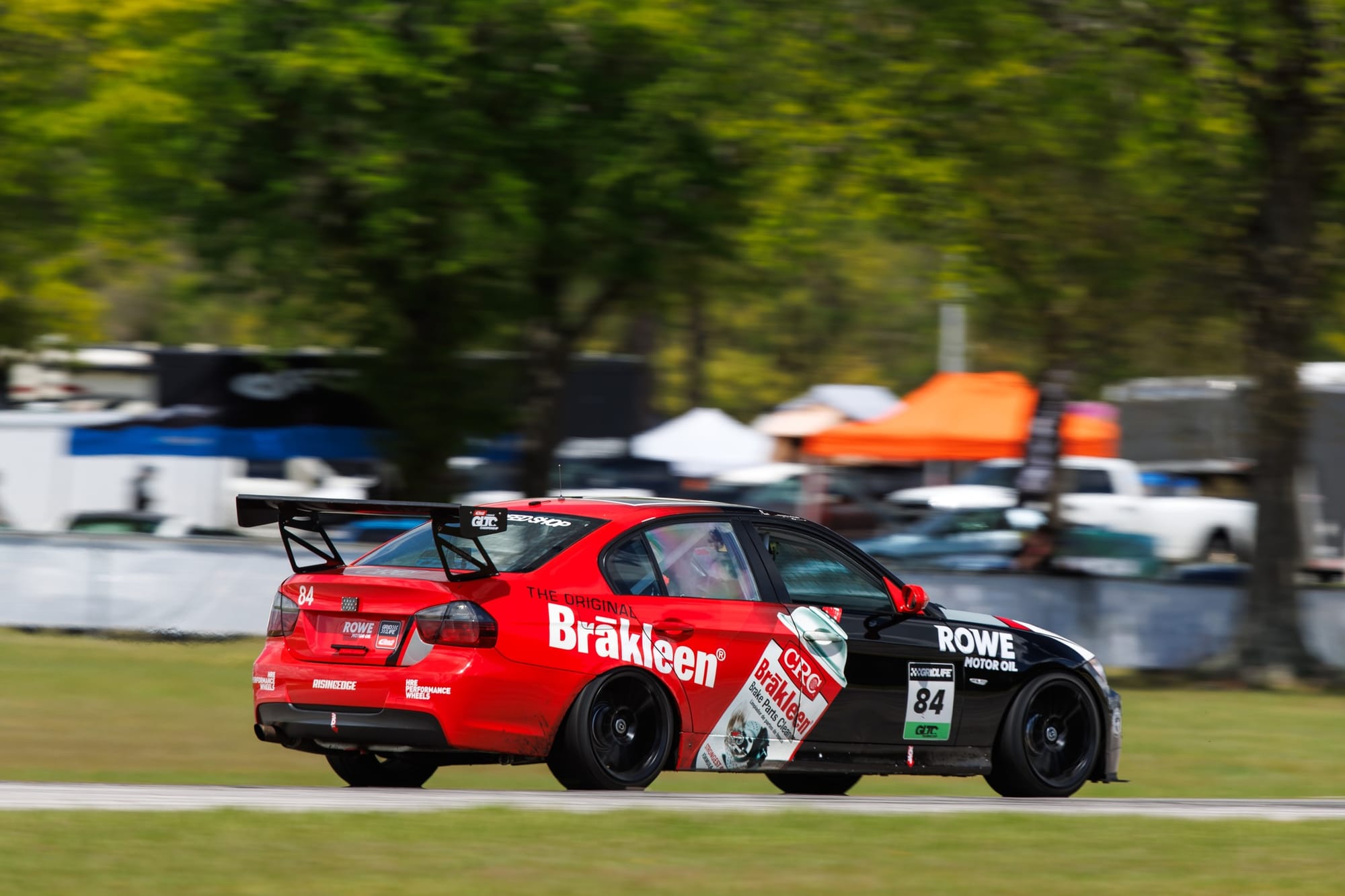

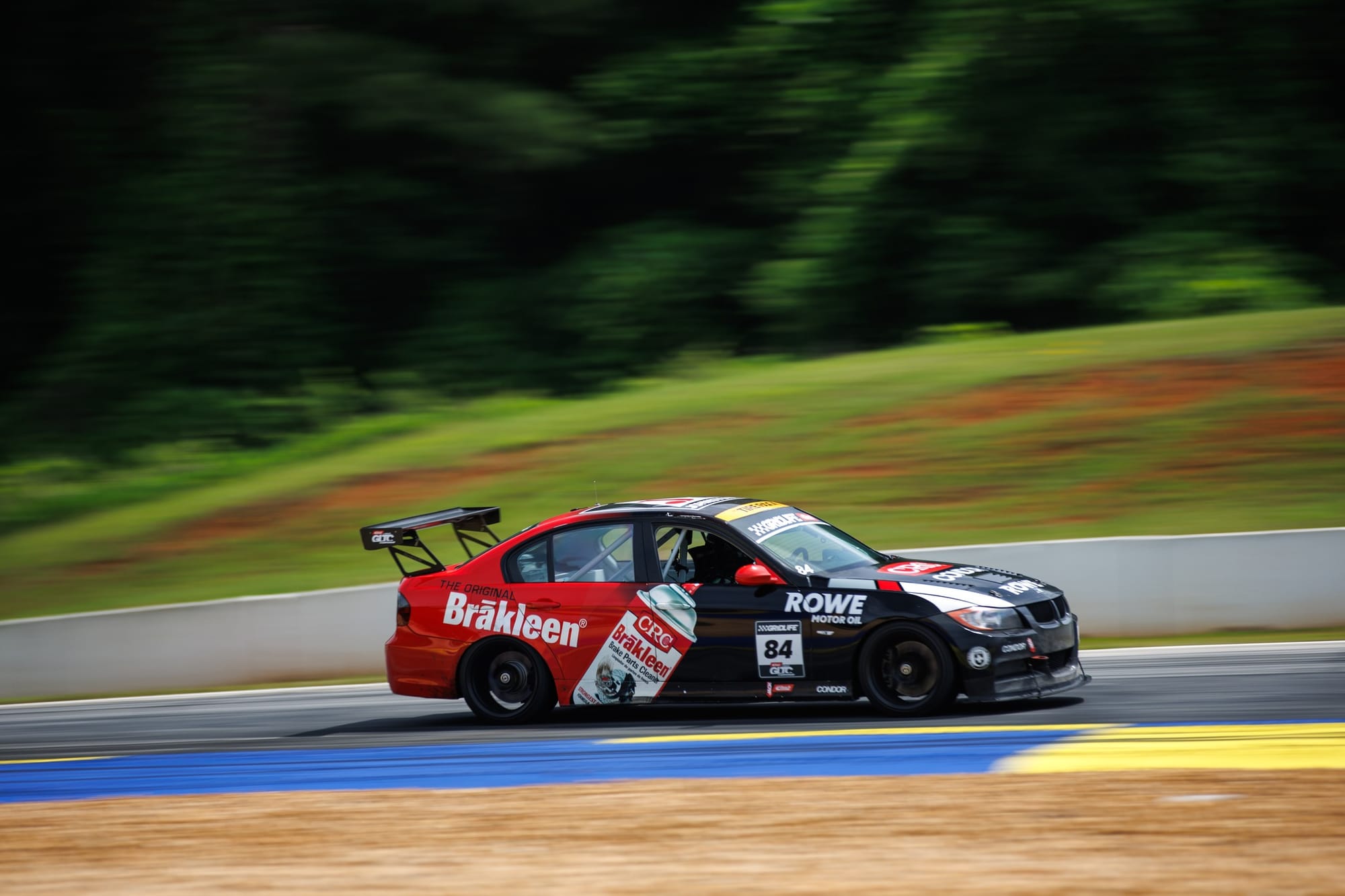

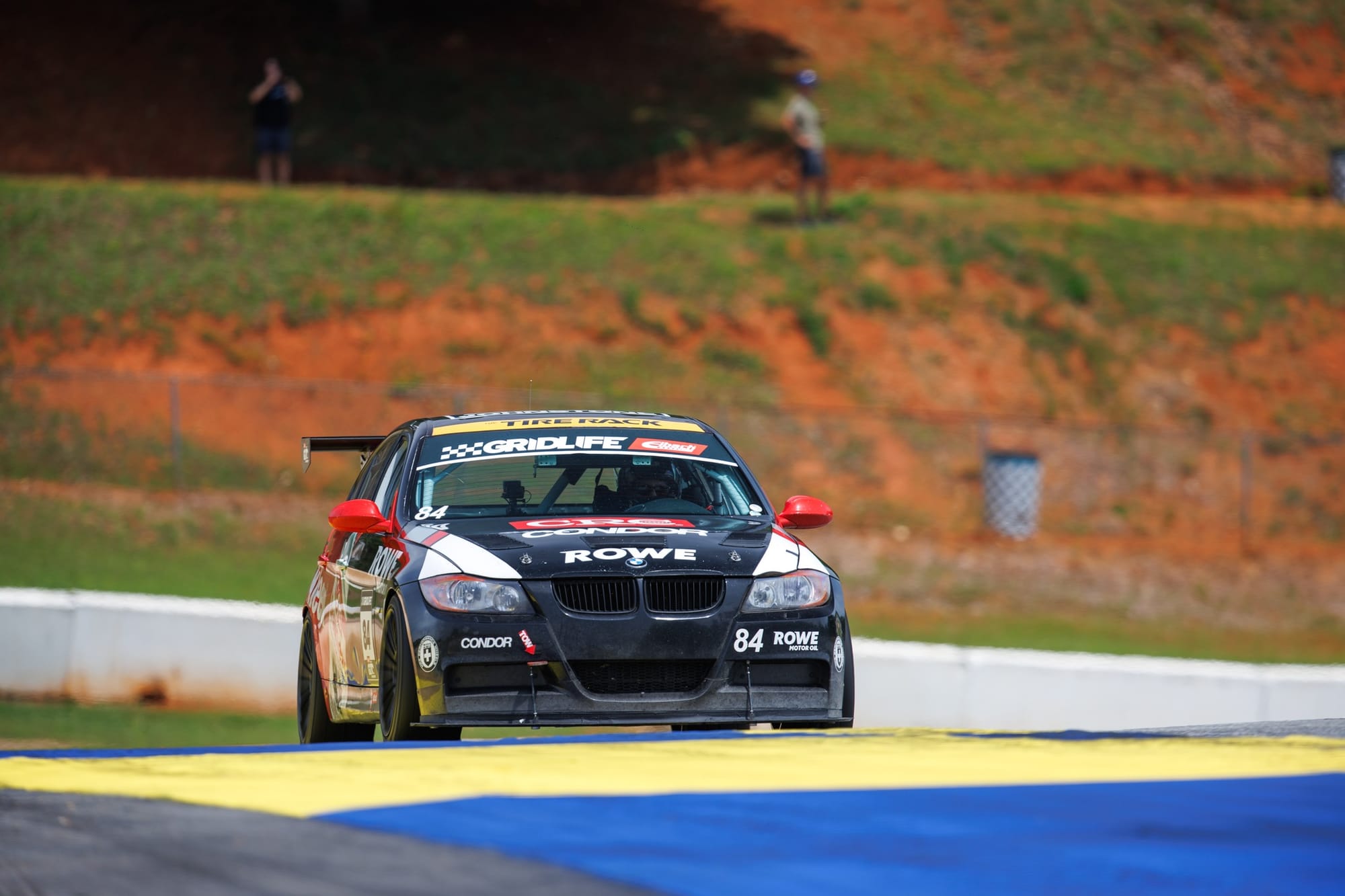

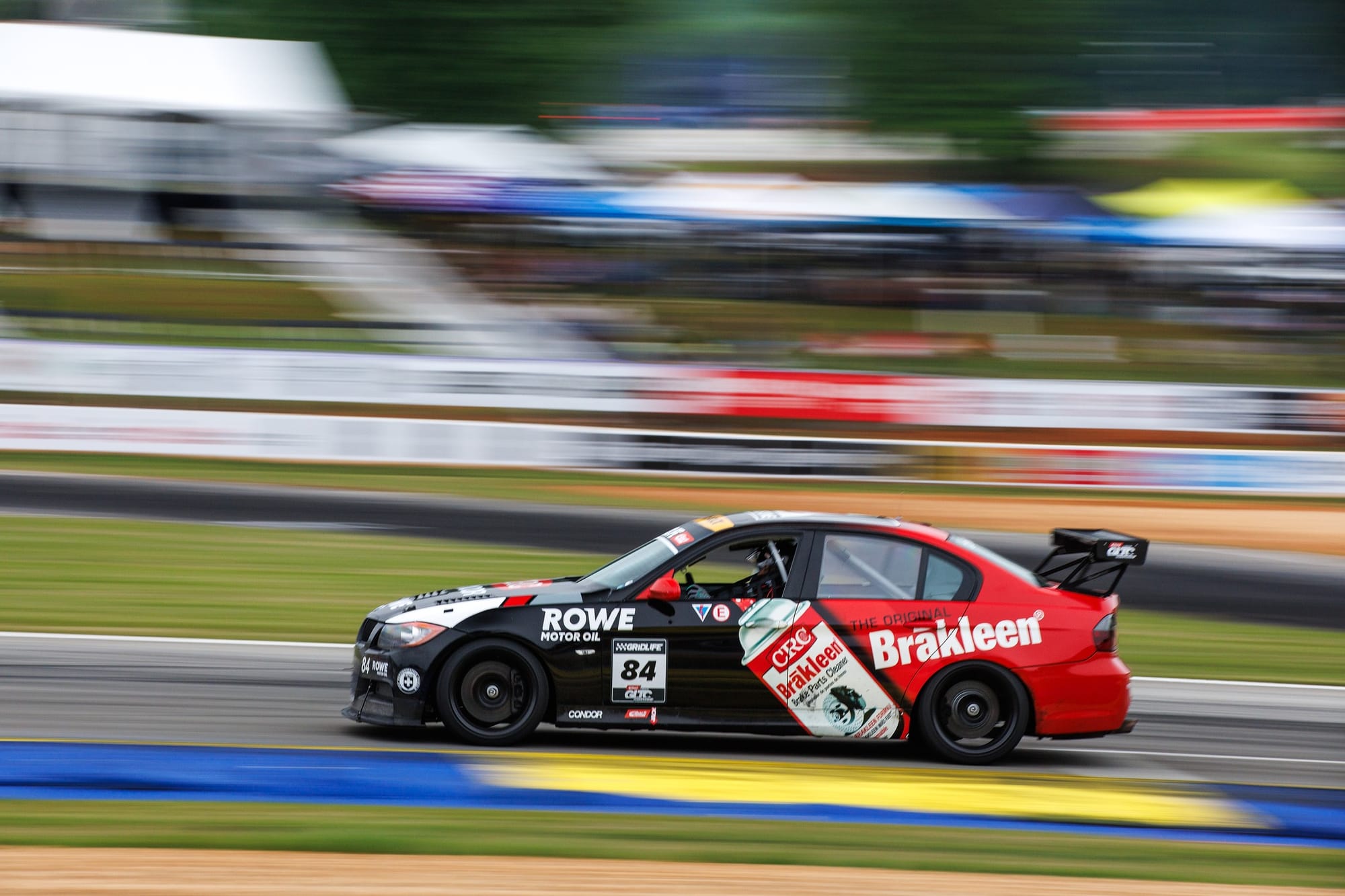

Bimmerworld-built and raced Continental Street Car Challenge ST-class BMW E90 race car. 2006 330i base chassis that has been a race car most of its life. It was a race-winner in CTSCC. This is a great club-racing car: it is a pro-level build that retains mostly stock/factory parts for easy serviceability.

It was initially built for endurance racing, but I have been sprint-racing it in Gridlife Touring Cup (GLTC) for the last two years. It has engine oil and power steering coolers, and the transmission and differential have provisions for coolers that were since removed to save weight. I still have most of the parts to reinstall those if you want to take it endurance racing.

Classed for GLTC, it makes approx. 232-248whp depending on the tune selected (and the weather, and the dyno...). It has 3 engine calibrations, selectable via a switch in the trunk. The car would fit in NASA TT/ST5 with minor ballast or by removing the splitter. I'm not familiar with endurance or SCCA or endurance racing classes. The car has a NASA logbook and NASA & SCCA PRO roll cage labels.

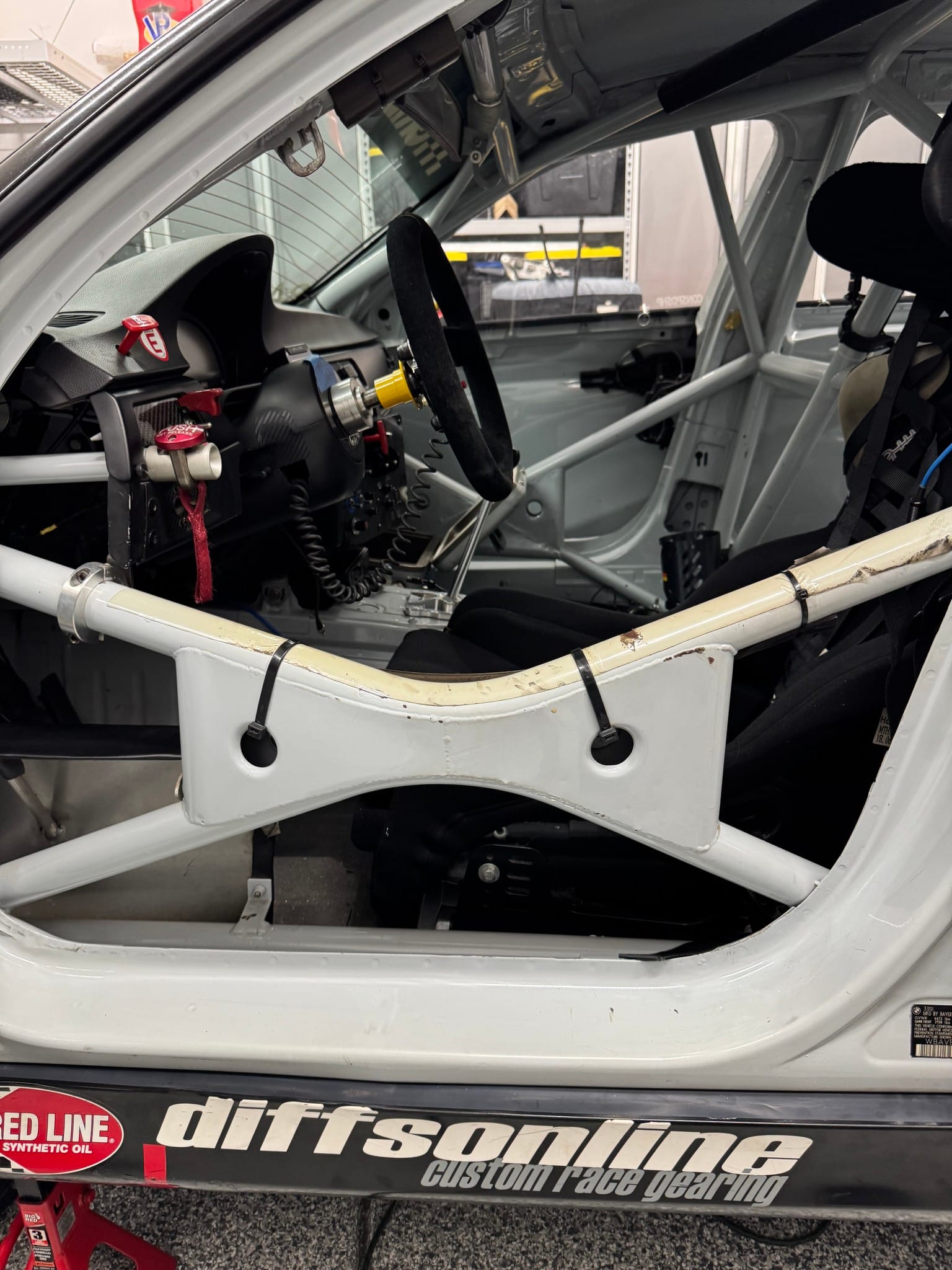

The entire chassis was stripped and seam-welded, and the extensive roll cage is one of the nicest parts of the car. It is a TIG-welded cage with an FIA-style double-bent X door bar, sill bars, double-X rear down tubes tied into the rear subframe, foot saver bars, and central jacking points. The driver's seat frame area is boxed and tied to the cage, including a sub-belt mounting bar. Rear shock towers are boxed in and braced for true coilover rear. The fuel cell area is framed, with a central rear jacking point and an integrated rear tow hook.

The N52B30 engine was new at the start of the 2024 season and has 31.4 hours on it. By now, most of the car has been replaced/refreshed/rebuilt. New wheel studs, 335i brakes, rear wheel bearings, all engine gaskets, all engine sensors, including O2 sensors and DISA valves, all fluids, rebuilt MCS dampers, new clutch and flywheel, and much, much more maintenance have been performed. Fluids always changed every other weekend. The car has been incredibly reliable. I have tons of documentation about the car, its electronics/parts, and its history, which are included with the sale.

Pro-level electronics package features a Bosch Motorsport MS4.3 DME, MoTeC ADL3 dash logger, MoTeC shift light module, and a MoTeC PDM15 with complete mil-spec engine and chassis wiring. Cables for the dash logger and PDM are included, along with the associated software and workspaces.

What It Needs

Due for fluids. Needs a new windshield (cracked) and muffler (the baffle rattles at idle, not a big deal). The new muffler is included, but hasn't been welded on. The fuel level warning light sender is dead. The body has plenty of dings, dents, and racing marks from 15-ish years as a race car. Some TLC on the body, and perhaps applying the new wrap (included), would go a long way!

What Is Included

  • The car
  • Spare, known-running, N52B30 engine that I removed from the car
    • (located in Charlotte, NC, on an engine cart, you will have to pay to transport it)
  • One set of 18x10" HRE FF15 Wheels (matte black)
  • Several sets of scrub tires (Falken v730 and Maxxis VR2, 265/35-18)
  • A modest spare parts package contained in plastic totes
  • MoTeC PDM and Data cables.
  • A brand new Brakleen full livery/printed wrap.
  • I can help with all of the associated software for the car's electronics, and have backups of all the files & the engine calibration.
  • Extensive digital and printed documentation for the car, it's history, and it's parts.

What's Not Included

  • The Coolshirt box + tubing, transponder, AiM Solo2, and Motorola radio are not included.

Recap

Price: $35,000
Location: Oakland Park, FL
Inquiries: hey at risingxedge.com
Bill of Sale provided, available for immediate pickup.

Build List & Parts Specs

but there is truly too much to detail!

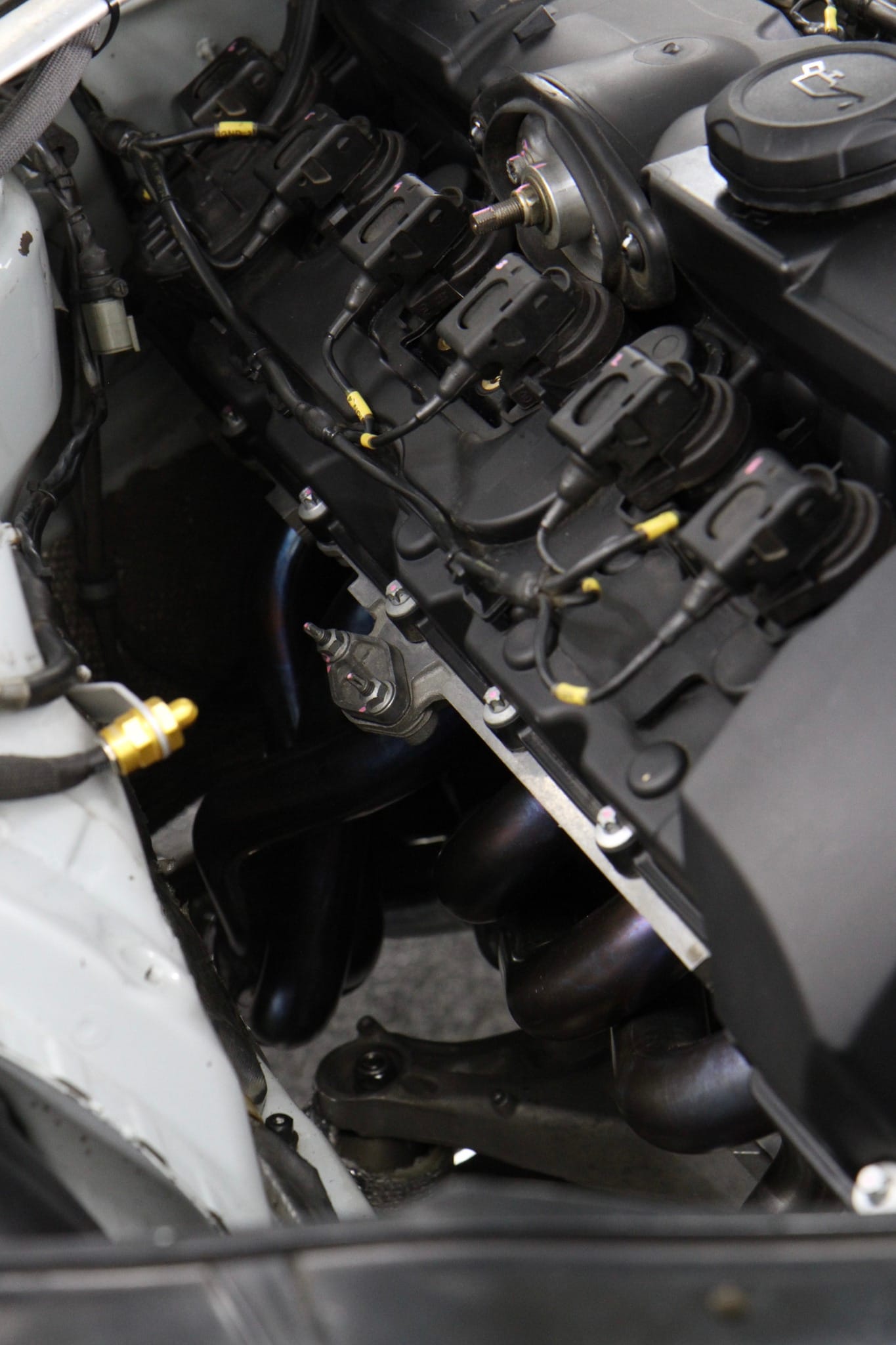

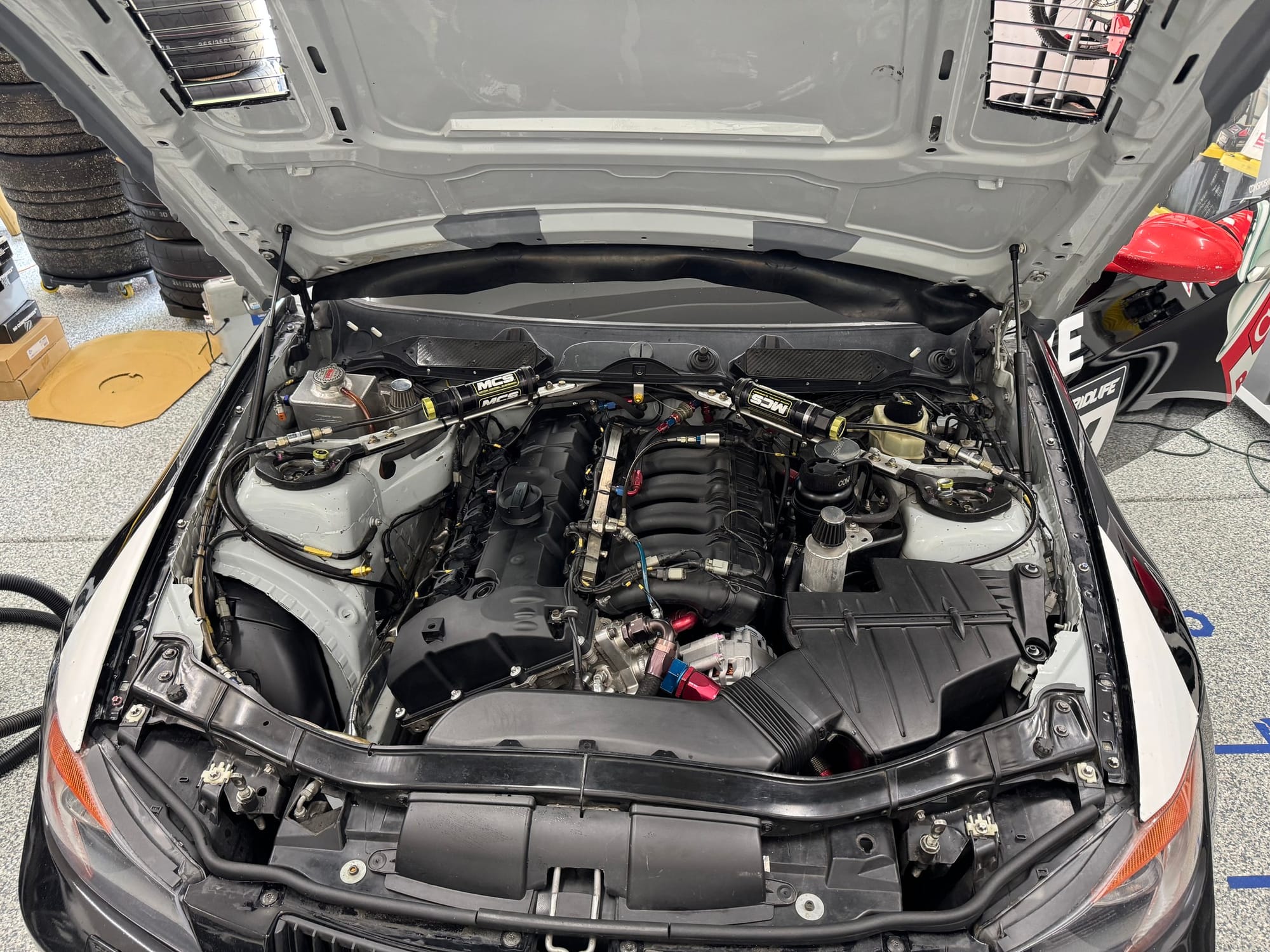

  • N52B30 with stock comp. forged pistons, ARP rod bolts, Kooks headers, 3" v-banded exhaust, Bimmerworld aluminum baffled oil pan, 31.4 hours on engine. Built by Engines By RF (Rick Fred).
  • The entire car is plumbed with AN fittings and braided hoses. Oil, fuel, coolant, power steering. Everything.
  • Mil-spec engine harness and chassis wiring. No stock wires remain.
  • Carbon fiber: hood (w/ vents), trunk, wing, splitter, front bumper lip, center console, heel plate.
  • Slick-top roof skin, fully gutted doors, plastic door windows. M-Sport bodywork. Front window defroster. New fender liners and all underbody panels present.
  • Bosch Motorsports MS4.3 (GrandAm) DME w/ 3 map switching and pit limiter. Traction control capable, but not configured.
  • MoTeC ADL3 dash logger w/ Pro Logging, professionally installed and fully integrated, EVERYTHING is available in logs
  • MoTeC SLM shift light
  • MoTeC PDM 15 w/ full car mil-spec wiring and break-out box
  • Custom MK60E5 ABS (with CAN logging), inquire for more details
  • 335i brakes with fresh OEM rebuilds, Girodisc 2-piece fully floating front rotors, PFC pads, all with 4 weekends on them
  • Novec 2.25kg fire bottle serviced May 2025, electric kill switches inside and outside car, Lifeline rain light (solid or flash).

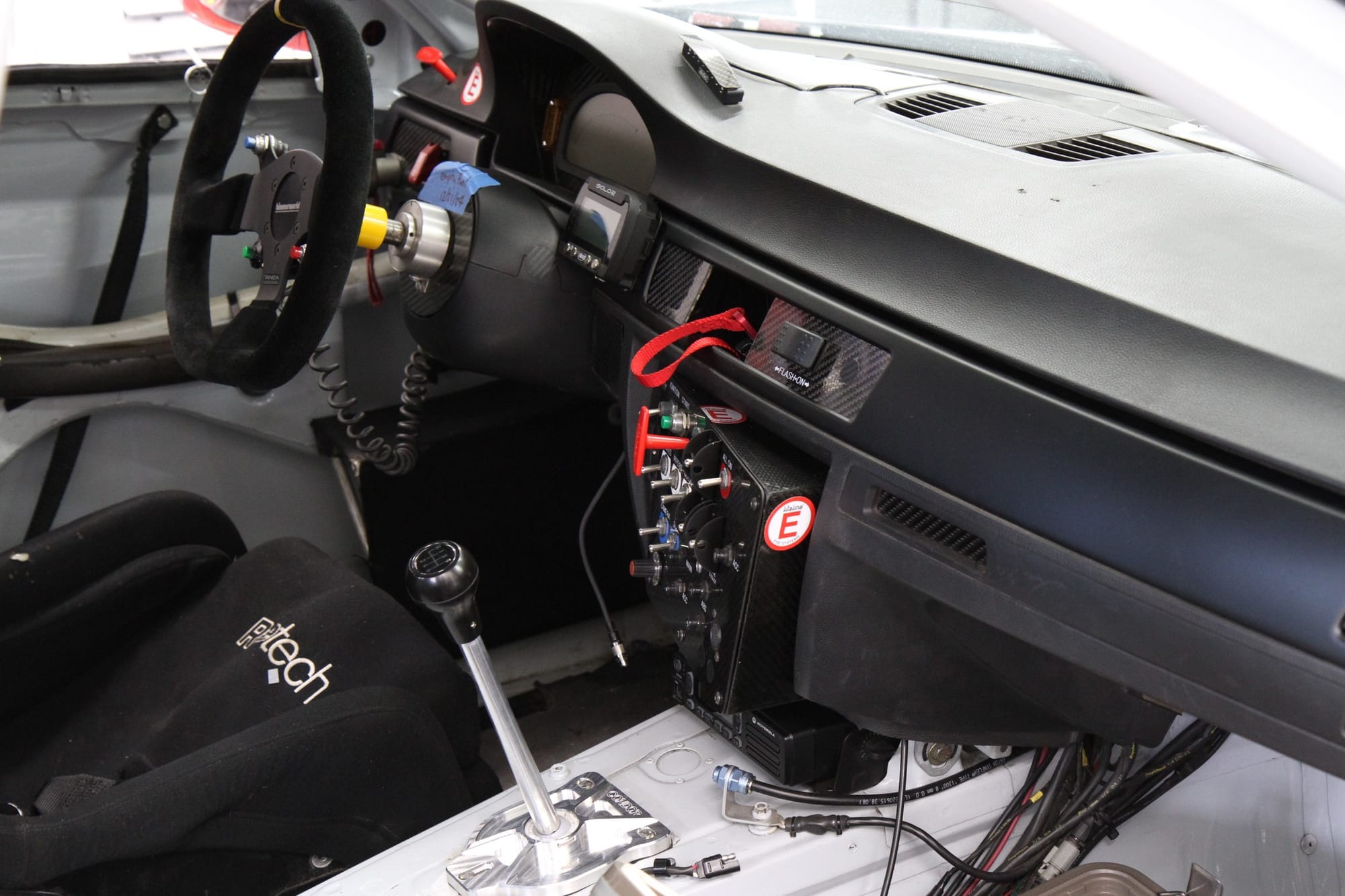

  • Lifeline 6pt harness, Safecraft triangle window/center nets, Racetech seat, Lifeline welded-on steering wheel quick release, adjustable steering column.

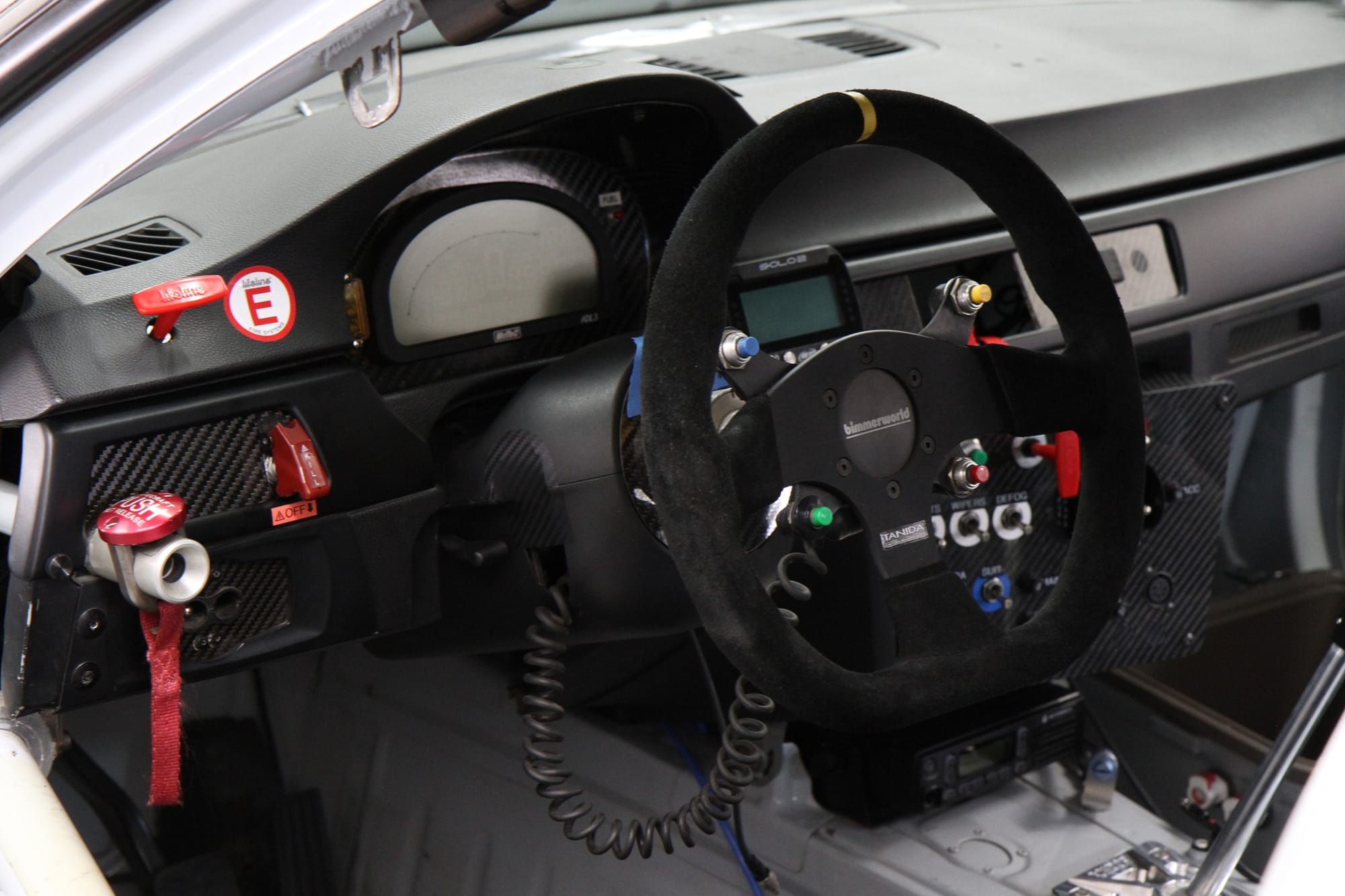

  • Steering wheel has 4 buttons: pit speed limiter, push-to-talk, dash alarm clear, dash next page.
  • DiffsOnline-built 6-speed transmission and custom race-carrier multi-clutch LSD, new OEM dual mass flywheel with ACT 6-puck ceramic clutch, new harmonic damper.
  • Bimmerworld spherical bearings in all of the suspension arms (including M3 aluminum front arms)
  • ATL 22 gallon fuel cell (20.5 w/ the foam and pumps). Dual lift pumps, surge tank, reserve/backup fuel pump that seamlessly switches over in the main pump fails, Aeromotive AFPR.
  • MCS 2-way Remote reservoir shocks, 1 season since rebuild, Hyperco springs, GC camber plates, true coilover rear
  • Custom sway bars: 32mm NASCAR style front, 17mm custom split/removable and 3-way adjustable rear
  • 18x10" HRE FF15 Wheels, 265/35-18 Kumho v730 Tires
  • Roughly 2850lbs wet (no driver), roughly 230-250whp. I have dyno charts for all the maps.
  • I have logs, videos, and lap times from a very average driver, if interested.
